IPSIIS

Innovative Processes, Sustainable Inspiring Insulation Solutions

Our solution

An insulation material must ensure optimal thermal resistance (low thermal conductivity) in the long term at low cost. It should not induce health, safety, or indoor air quality issues. Energy savings should be maximum and the investments must remain measured. Ability to provide a constructive function and a dimensional stability are essential features in many contexts.

IPSIIS develops a wide range of insulation products to meet these requirements. The  process  exploits a breakthrough innovation, with a simple goal :  producing insulation foam, using the potential of agro-food industry by-products together with abundant natural resources or materials waste.

Main characteristics:

  • Insulating
    The inorganic foam is very insulating (low thermal conductivity, with a λ today between 40 and 60 mW / mK). This characteristic is maintained in a very wide range of temperatures.

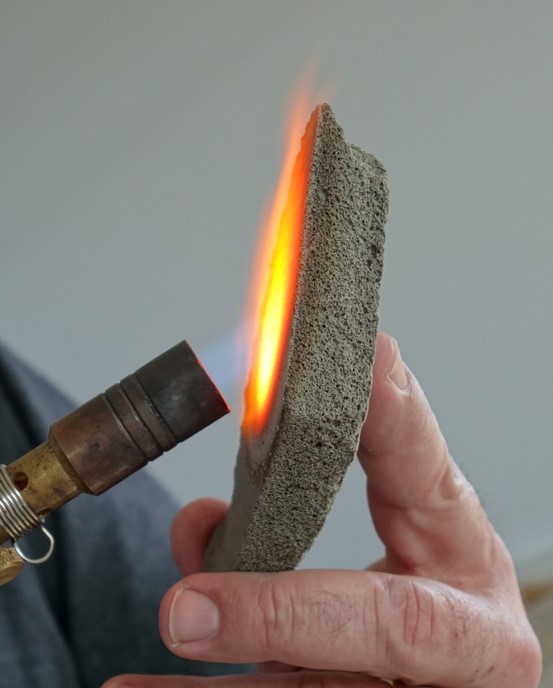

    As shown in the figure below, the material resists thermal shocks and strong temperature gradients:
    A sample having a thickness of 2 cm, is maintained at a temperature of about 900 ° C, the temperature of the opposite surface remains moderate (two minutes test, the cold face temperature <60 ° C).Feu
  • Lightweight
    The mineral foam formulation is adapted to different contexts in order to obtain optimum density materials. Typically, density and resistance to compression are two antagonistic characteristics, and it is required to seek an optimum compromise given the constraints of the project. IPSIIS now produces foams with density varying between 100 and 400 kg / m3 and we are working to obtain foams with densities less than 80 kg / m3.

  • Non-flammable and non-combustible
    The matrix is mineral and non-combustible. It does not use flame retardants. IPSIIS foams do not release fumes or toxic gases when exposed to high temp. or open flame.

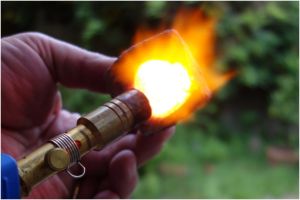

    6*6*6cm, parois 2 cm Sample 6*6*6 cm, 2 cm-thick walls 3 min test

    Sample 6*6*6 cm, 2 cm-thick walls
    3 min test

  • Refractory
    IPSIIS processes produce refractory materials adapted to security issues and industrial uses (from 800°C to over 1200 ° C).

  • Open porosity
    The open porosity allows the attenuation of noise factor and therefore contributes to the acoustic comfort. This porosity is easily adapted to the context of use, it also allows a respectful use of old buildings without disturbing the equilibrium moisture.

  • Sustainable, recyclable
    IPSIIS mineral foams are healthy, sustainable, durable and eco-designed. The implementation process is reversible. At the end of life, IPSIIS mineral matrices can be reintegrated into the manufacturing process or returned to the natural environment. No residue is generated during the production steps.

  • Affordable
    IPSIIS processes are non  capitalistic, products can be obtained at low marginal cost. Both energy content and carbon footprint remain low and consistent with decentralised production.
